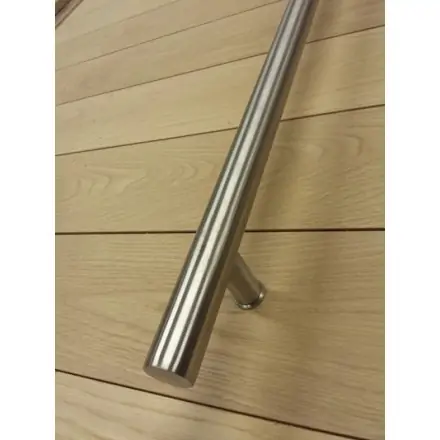

Modern Bar 3301

• Hardware Prep: Prep onsite only
• Available Finishes: Flat Black, Brushed Stainless Steel
• Available Lengths: 35-7/16″, 47-1/4″, 70-7/8″
• Post Diameter: 1-1/4″

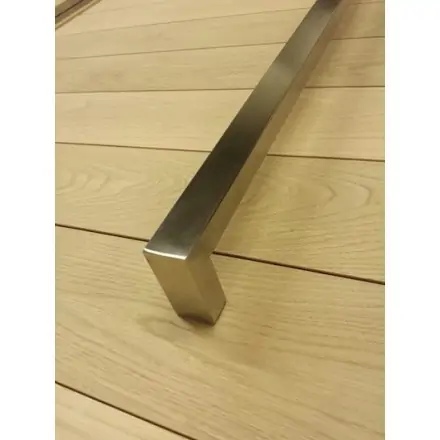

Square Handle 7910

• Hardware Prep: Prep onsite only
• Available Finishes: Flat Black, Brushed Stainless Steel
• Available Lengths: 35-7/16″, 47-1/4″, 70-7/8″
• Post Dimensions: 1-1/2″ x 1″

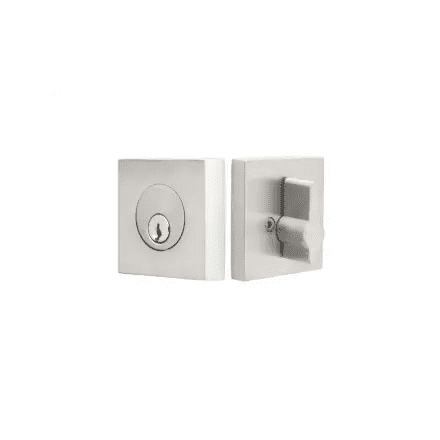

Emtek Deadbolt

• Hardware Prep: Shop prep available for bore, not latch plate (Single Bore needed)
• Available Styles: Square, Modern Disc (round)
• Available Finishes: Flat Black, Brushed Stainless Steel, Oil Rubbed Bronze, Satin Nickel (some finishes not available in all styles)
• Contents: Sold as complete set, includes latch and strike plate
• Keyway: Schlage C
• Construction: Solid Brass Cylinder, Housing, Collar and Rosette; Hardened Steel Bolt; Heavy Gauge Steel Understrike and Brass Trim Strike shipped with every Deadbolt
• Backsets Available: 2-3/8″ (standard), 2-3/4″ (upon request)
• Door Thickness: In stock units fit door between 1-3/4″ to 2-1/4″ thick

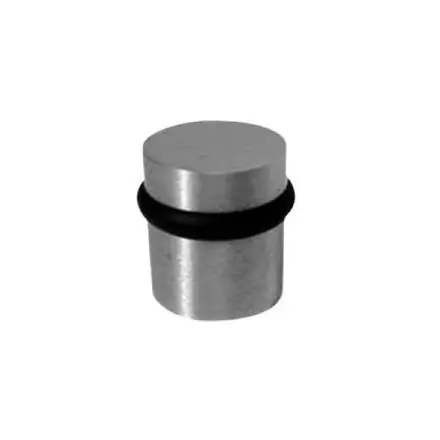

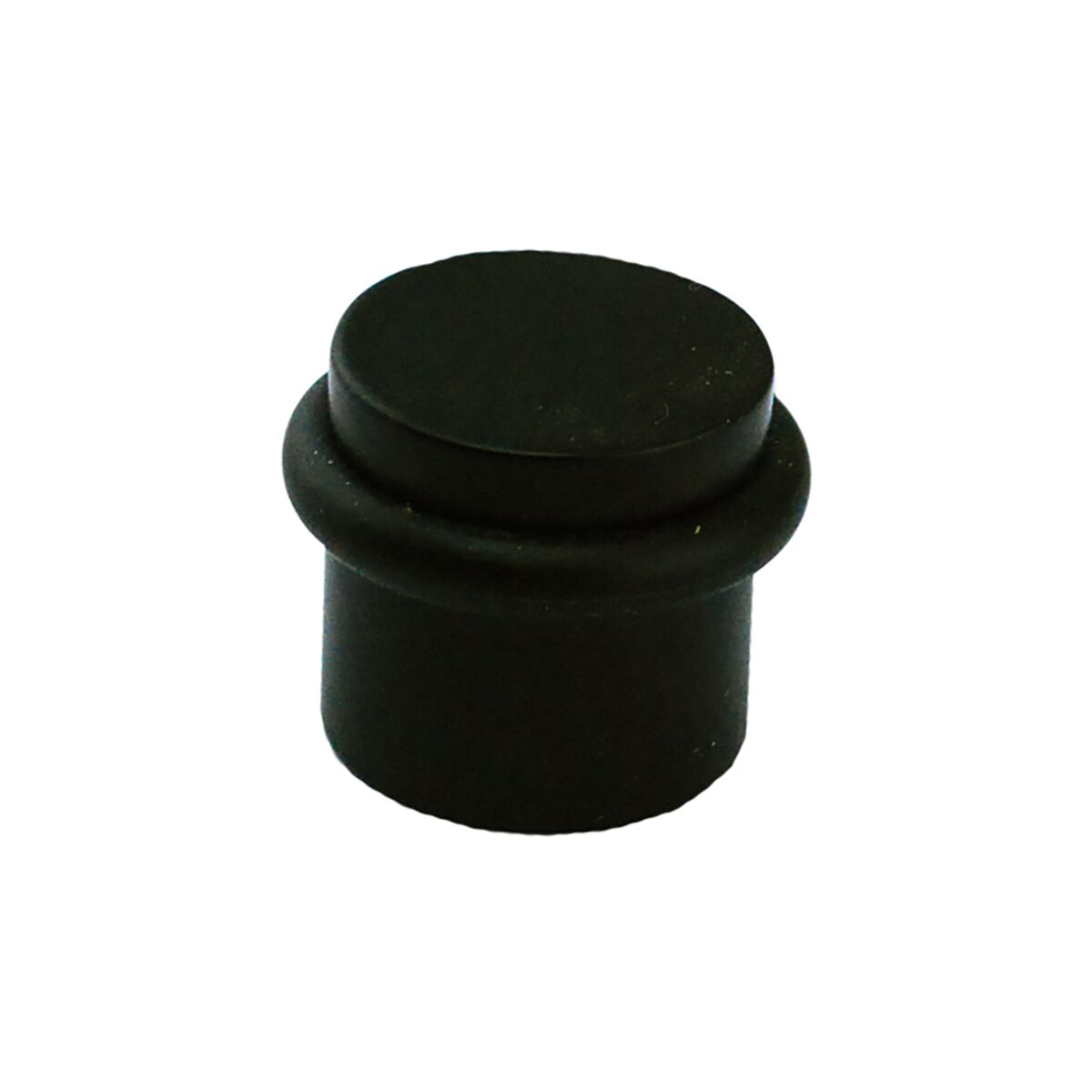

Modern Door Stop

• Hardware Prep: Prep onsite only
• Available Finishes: Flat Black with Black Bumper, Stainless Steel with Black Bumper
• Material: Brass with DuraFlex bumper
• Features: Modern style universal stop
• Options: DuraFlex Bumper available in black
• Dimensions: 1-1/4″ diameter, 1-1/2″ height, 0.5 lbs.
• Anchors: #12 x 1 1/2″ WS, plastic or #12-24 x 1″ FH MS, lead

Concealed Magnetic Catches

• Hardware Prep: Shop prep available for catch, not latch plate
• Contents: With this package, you get two sets of magnetic catches–one installed close to the top of the door and one installed close to the bottom of the door
• Available Finishes: Stainless Steel, Black
• Location: Installed along the side of the door
• Dimensions: 1 1/8″ diameter x 5/16″ deep

Finishes

Brushed Stainless Steel

Oil Rubbed Bronze

Flat Black

Satin Nickel

Pull Handle Styles

Modern Bar 3301 in
Brushed Stainless Steel

Square Handle 7910 in
Brushed Stainless Steel

Deadbolt Style

Square Deadbolt
in Flat Black

Square Deadbolt
in Brushed Stainless Steel

Square Deadbolt
in Oil Rubbed Bronze

Square Deadbolt
in Satin Nickel

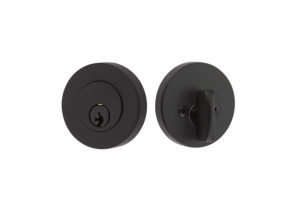

Modern Disc Deadbolt
in Flat Black

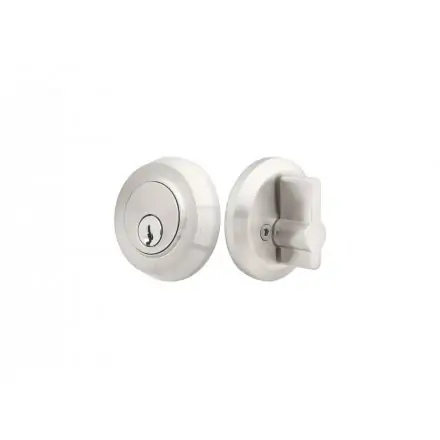

Modern Disc Deadbolt
in Brushed Stainless Steel

Modern Disc Deadbolt
in Oil Rubbed Bronze

Modern Disc Deadbolt
in Satin Nickel

Door Stop Finish

Magnetic Catches
