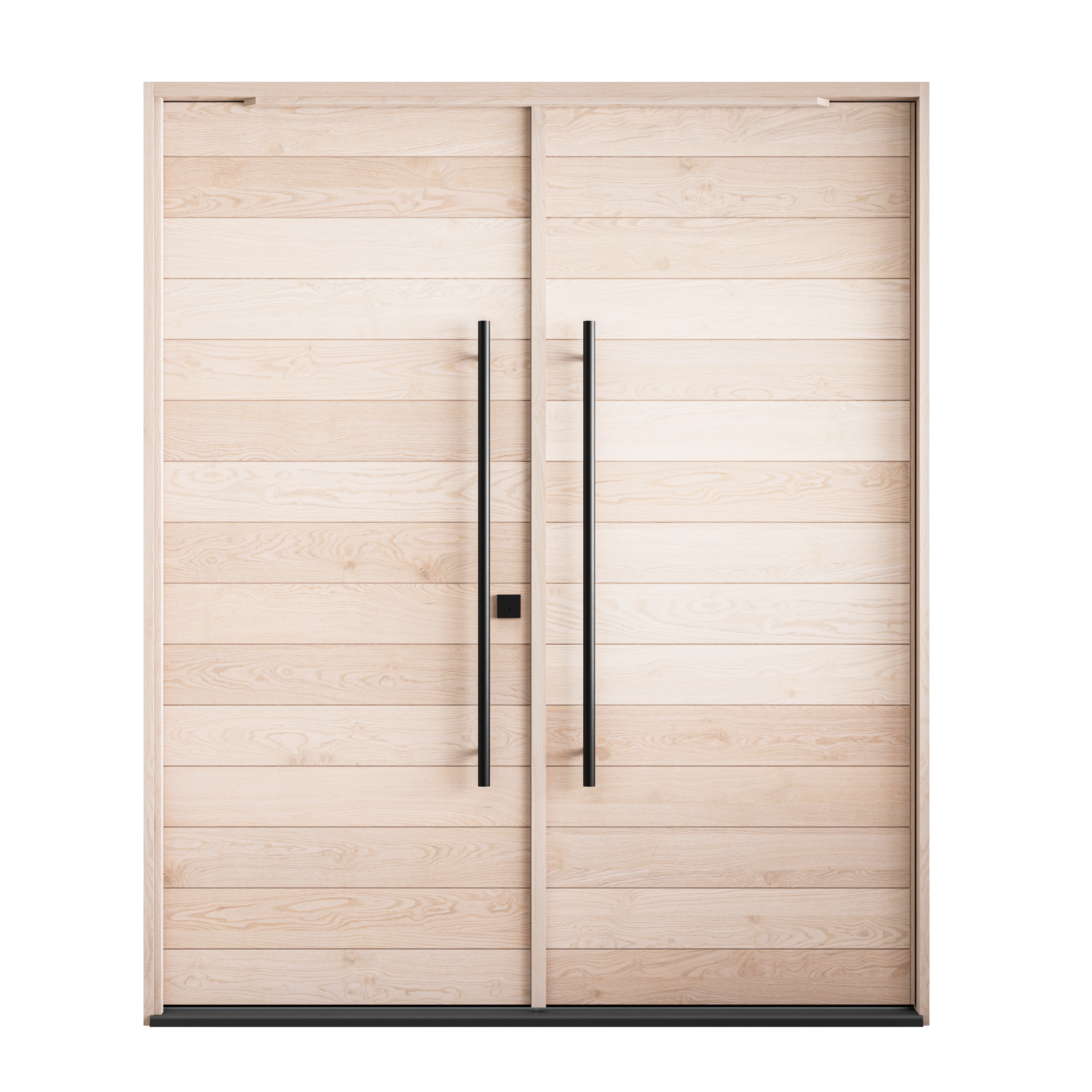

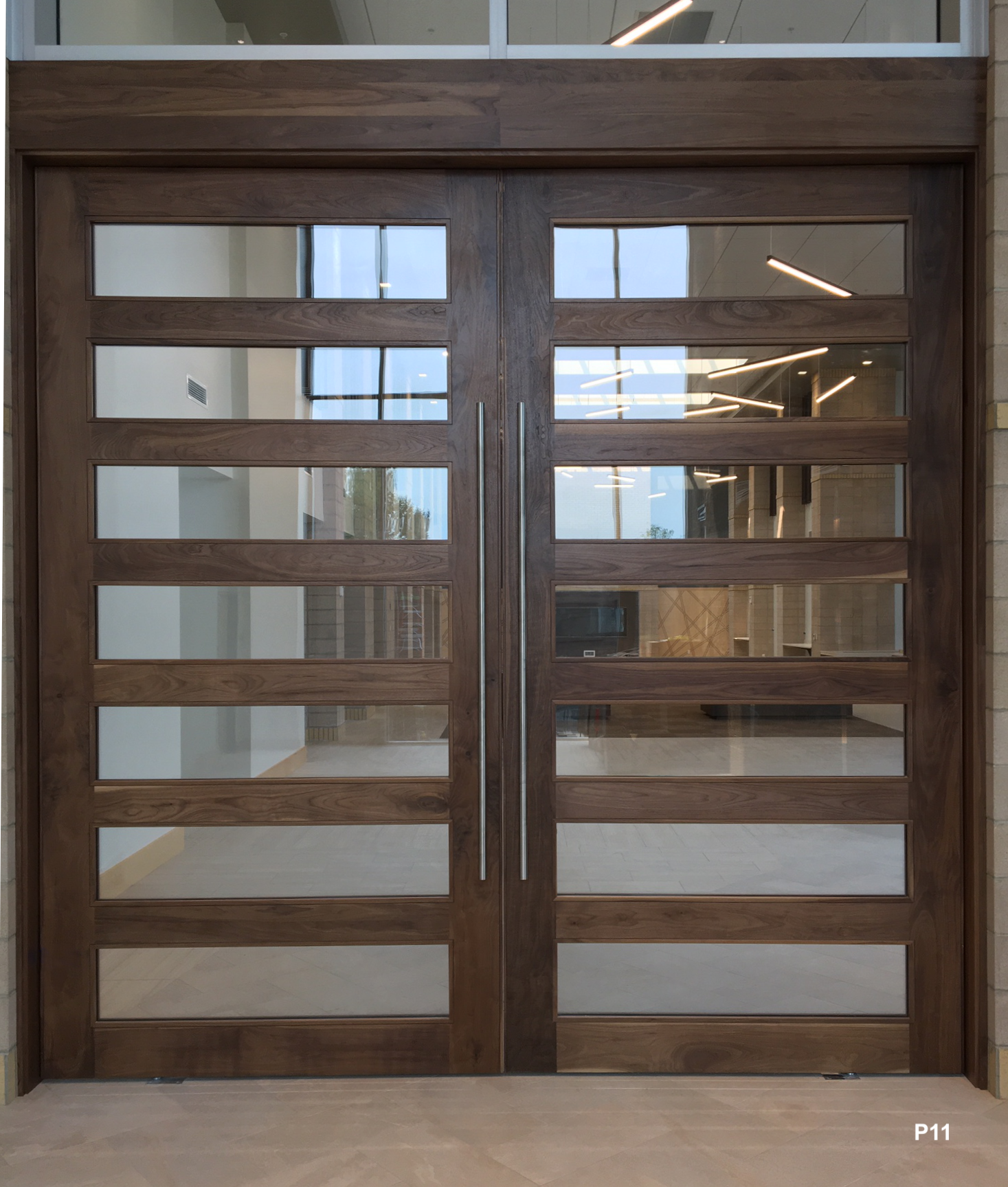

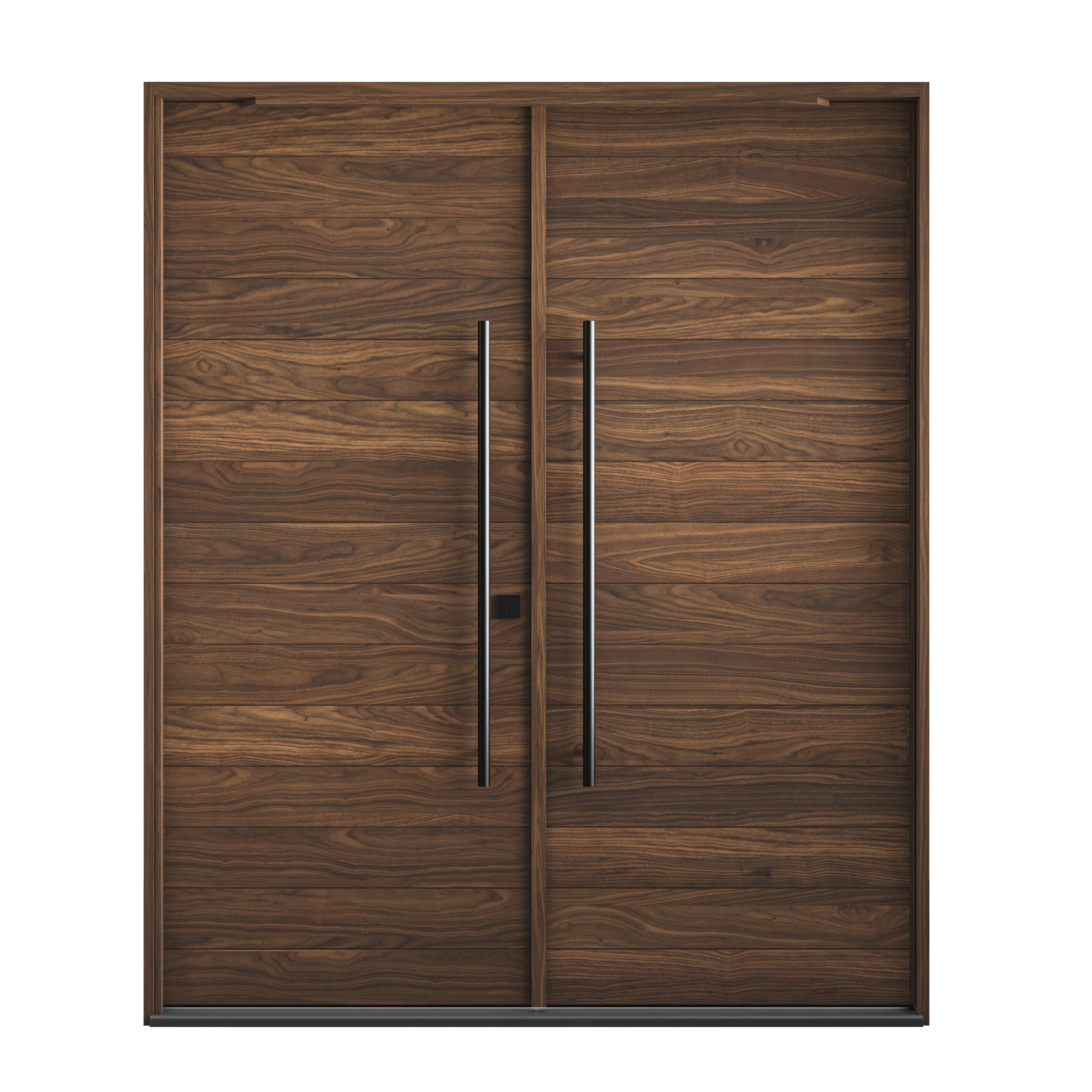

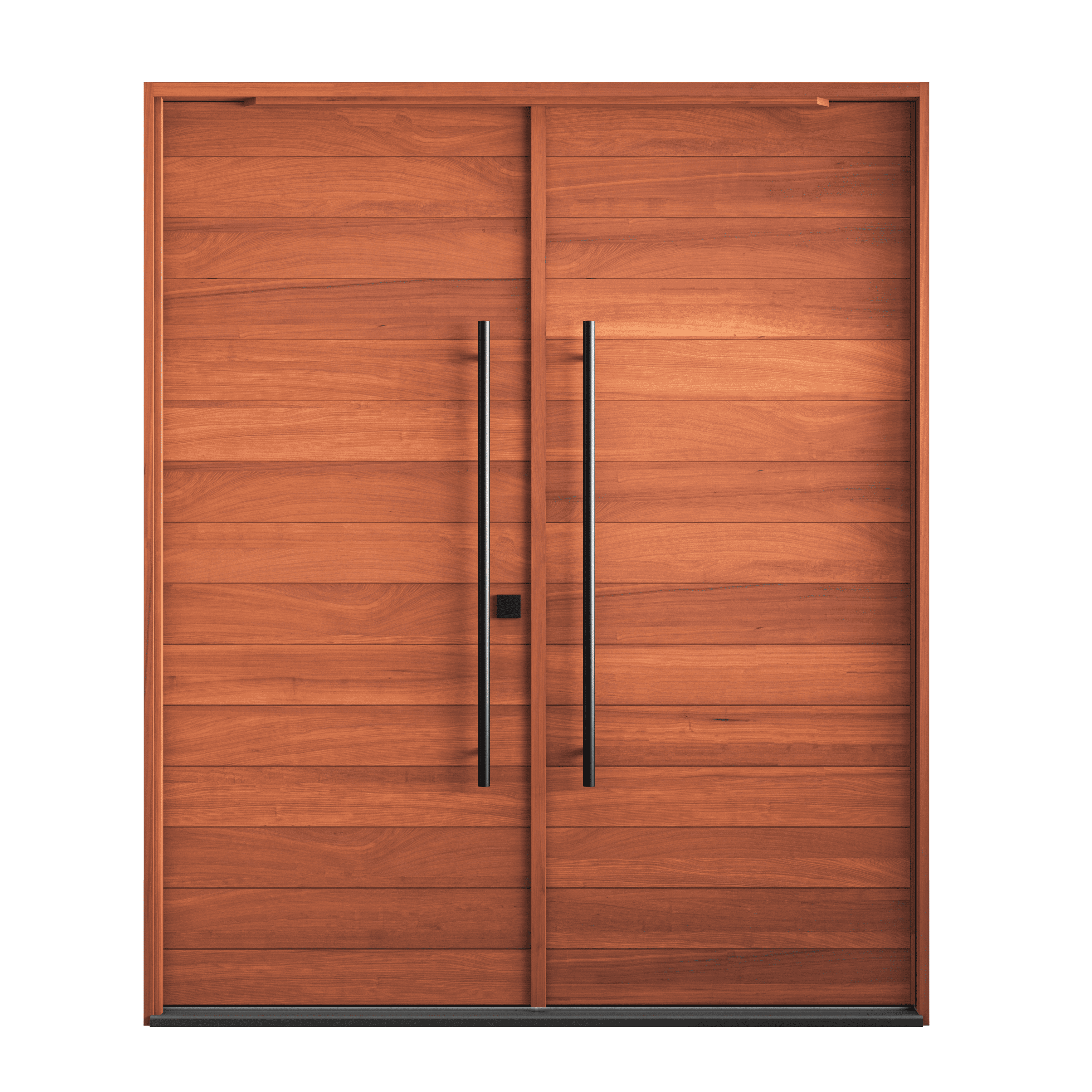

The Double

You may choose from a number of our popular interior doors styles. Please use the diagram below to to identify which door style you wish to incorporate into the wall system design. Contact us with questions about custom styles.

Because each door we make is sized specifically for the project, you are not restricted to any standard sizes.

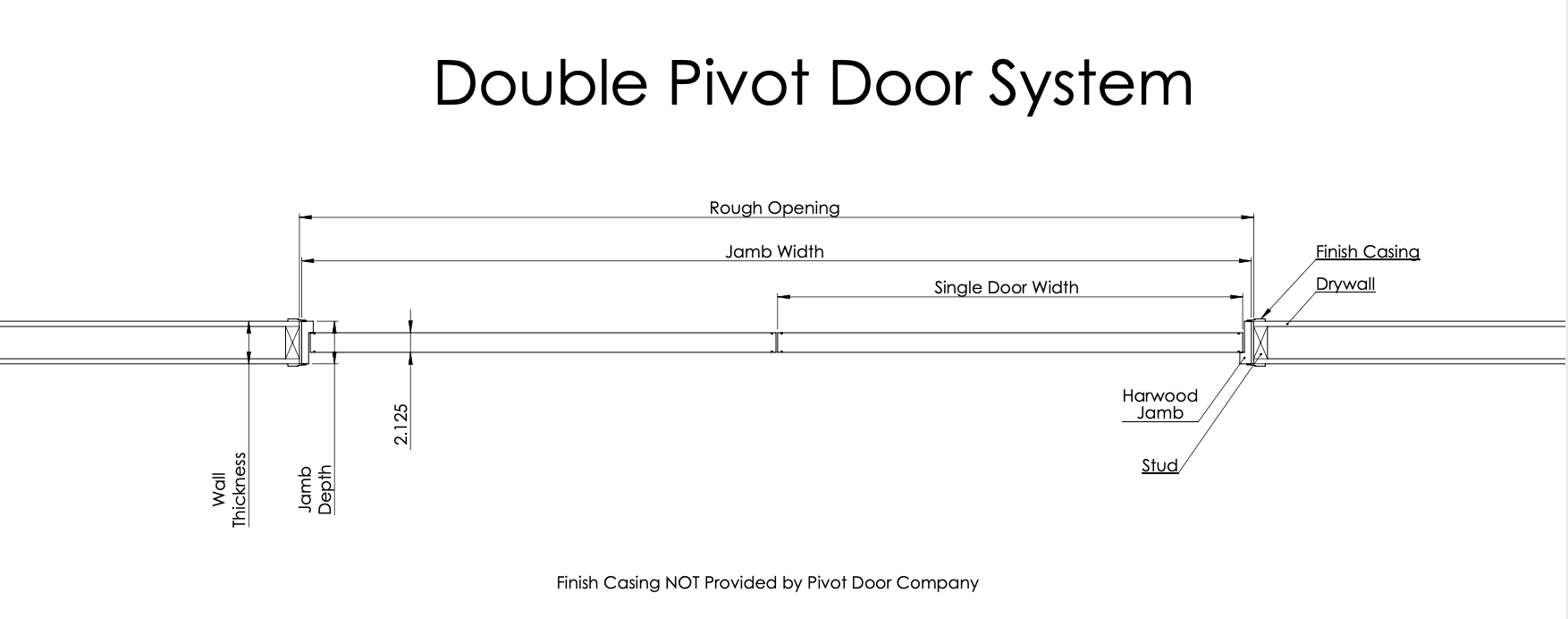

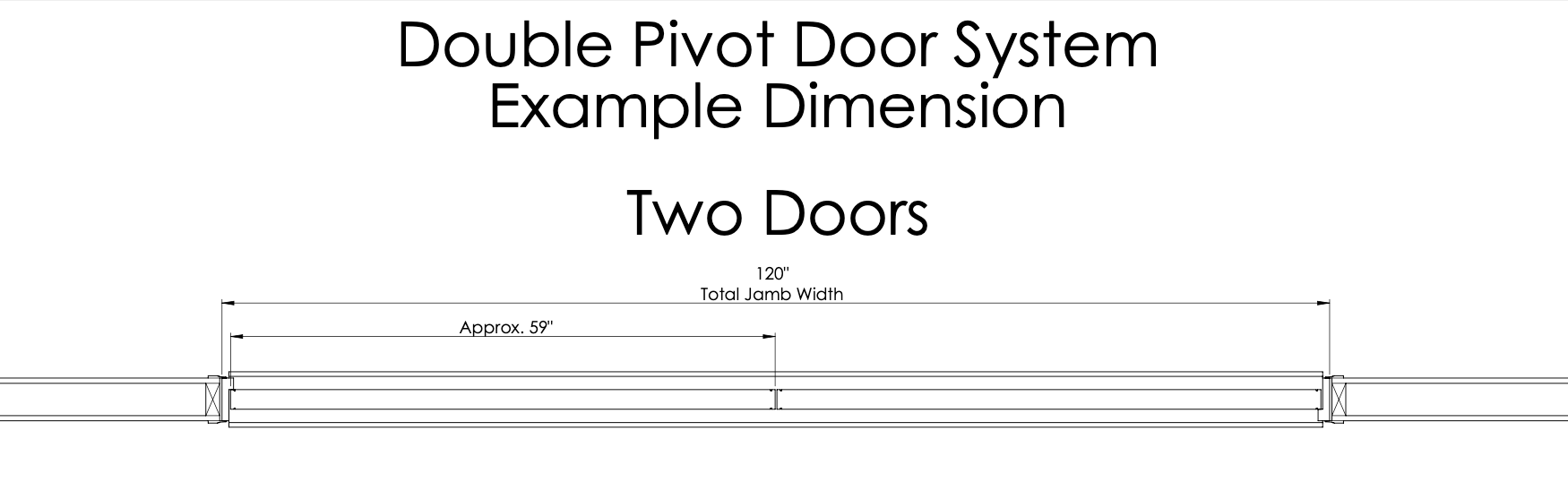

When sizing the door you will need to consider two principle measurements, rough opening and frame size. See the image below for reference.

The rough opening is the distance from stud to stud for framing purposes. We advise that you build a rough opening that is ½ in. wider and 1/2 in. taller than the total door unit. We find that this allows for sufficient shimming and adjustments during installation.

This is the size of the actual door jamb. When determining the net frame size you want to put in a number that is at least a half inch less than the rough opening size to allow room to square and level the door. For example, for a rough opening 48 in., order a net frame size of 47 1/2 in.

We offer a range of wood species to go standard with our doors. If you would like something other than what we have, in most cases we can source other wood types that are not listed below, though prices will vary.
As you decide which wood you’ll choose please consider these important factors. How the wood species will react to your climate and site condition. Also, how it collaborates with the overall design of the door and your project. If you have specific questions about what wood to choose that are not answered here, feel free to reach out to us.

Images are for reference only. All orders are shipped out unfinished and stain ready. (No stain or clear coat)

Jamb depth depends on the thickness of the walls into which the door unit will be placed. Most walls are studded out with 2×4’s or 2×6’s, and so, our most common jamb depths are 4 5/8 in. and 6 5/8 in., respectively. Usually the jamb is flush with the interior and exterior wall covering, with the seam covered by casing.

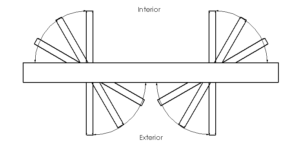

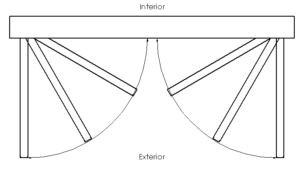

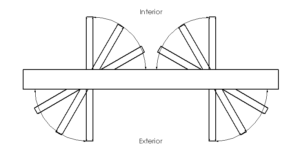

When you order your pivot-hung entryway, you have options when it comes to how the door will swing. Though 99% of the time, you will want a door that swings into the interior (in-swing), we are set up to build jambs where the door swings out to the exterior (pushing your visitors out of the pathway of your tremendous door). However, when it comes to right-hand or left-hand swing, the layout of your installation site will determine the swing configuration. To determine if the door is left-hand or right-hand in-swing, imagine you are looking at the door from the street. If the pivot point is on the left side, it is a left-hand in-swing. If the pivot point is on the right-hand side, the door is a right-hand in-swing. Swing configuration defines the direction of the door motion and from which side the pivot is placed.

When you order your pivot-hung entryway, you have options when it comes to how the door will swing. Though 99% of the time, you will want a door that swings into the interior (in-swing), we are set up to build jambs where the door swings out to the exterior (pushing your visitors out of the pathway of your tremendous door).

The pivot placement is the distance the pivot pin will be placed away from the vertical edge of the rough opening. Generally speaking, we suggest placing the pivot over one quarter of the distance of the door width. We find that this presents a solid aesthetic for most door dimensions. If your rough opening is 48” and you choose a 9” pivot placement, the door will roughly have a 37” pass through opening. You want to ensure you leave at least a 36” opening. (Rough opening width – pivot placement measurement – 4 in. for jamb = a number greater than 36). See picture for details or contact us for clarification.

If you choose a door style with a window, you have the option to place the window on the handle side or on the pivot side.

If you choose a door style with a steel plank, you have the option to place it on the handle side or on the pivot side.

All glass we install is 1″ thick tempered double-paned, insulated glass. Clear and frosted glass patterns are standard pricing options.

If you are looking for different finish or insulating options, contact us directly and we can provide pricing.You can vary the glass pattern (rain, reflective, glue chip, reeded etc.), glass construction (low e, laminated) or tint (grey, brown tints).

You may choose between two different finishes for the aluminum threshold cover plate; Black or Grey.

You may choose between two different finishes for the aluminum threshold cover plate; Black or Grey.

If there is any type of wood covering on the interior of the house, you will need a type 2. The type 2 threshold has a 90 degree angle on the interior facing side for the wood covering to butt up against. If the exterior floor is the same level as the interior floor, you will need a type 1 threshold. More commonly, though, the exterior floor is lower than the interior floor and you will need a type 2 threshold.

Our standard pivot hardware is a durable, specially engineered free-swing pivot hinge. This pivot hardware works for a wide range of doors, from small to very large. No matter the door size, the free-swing pivot hinge allows for effortless door operation. The hardware incorporates sets of ball-bearings for smooth, long-lasting performance. The door swings freely around the pivot point. There are no springs or tension pulling the door closed.

In commercial applications and in rare residential applications, we install a bottom closer. The bottom closer creates constant tension on the door’s swing to pull the door into the closed position. This means one must hold the door in order to keep it open. With a closer the door will not rest in an open position unless the hold-open feature is activated, which holds the door open at a 100° angle.

Our standard color for the integrated handle is BLK-120 (black). You may choose any color available. We can purchase colors from the link below. Please look through the options, Prismatic Powders allows you to buy samples if you’d like to see the colors in person. We only need to know the color code.

Single Bore is for the iconic pull bar and deadbolt set up. We will pre-drill the door for a deadbolt with 2 3/8 in. or 2 3/4 in. backset. Standard bore diameter is 2 1/8 in. The term “backset” refers to the distance from the edge of the door to the center of the bore hole and is a personal preference. We suggest the smaller of the two options, 2 3/8″ especially if the door has glass. See the diagram below for more details.

Double Bore is for a traditional entry-set. We will pre-drill the door for a handle with 2 3/8 in. or 2 3/4 in. backset. Standard bore diameter is 2 1/8 in. The term “backset” refers to the distance from the edge of the door to the center of the bore hole and is a personal preference. We suggest the smaller of the two options, 2 3/8″ especially if the door has glass. See the diagram below for more details.

We can mortise the door for many entry lock sets. Please contact us directly to configure your specific requirements.

If you wish for us to prep for a handle you purchase from another vendor, you will need to provide us with the specifications for the handle or lockset so we can properly prep. You may be required to send it to us for us to adequately prep your door.

• Alternatively, you may decide that you want to wait and have a local carpenter prep the for the door handle.

You can choose between the following sidelight configurations: – Right Sidelight – Left Sidelight – Transom light – Double Sidelight – Left Sidelight with Transom – Right Sidelight with Transom – Double Sidelight with Transom.

Sidelight placement is specified with reference to the exterior view. If you want a 12″ sidelight that is on the right side when viewed from the exterior, click on the dropdown options under “Right Sidelight” and select the option: 12″ right sidelight. If you want a double sidelight, simply a size under both the the Right Sidelight and Left Sidelight options. Double sidelights can be of different sizes.

This is the size of the actual Sidelight jamb. When inputting the net frame size you want to put in a number that is at least a half inch less than the rough opening size to allow room to square and level the unit. The door will be built with the sidelight attached so be sure to input the height of the door and the height of the sidelight the same.

Example: 48″ X 98″ door with a 18″ X 98″ sidelight will get you a door and sidelight combo that measures 66″ X 98″ (the rough opening size should be somewhere around 66 1/2″ X 98 1/2″).

All glass we install is 1″ thick tempered double-paned, insulated glass. Clear and frosted glass patterns are standard pricing options.

If you are looking for different finish or insulating options, contact us directly and we can provide pricing.You can vary the glass pattern (rain, reflective, glue chip, reeded etc.), glass construction (low e, laminated) or tint (grey, brown tints).

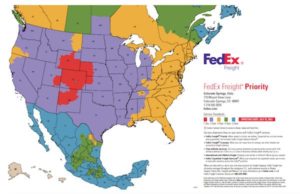

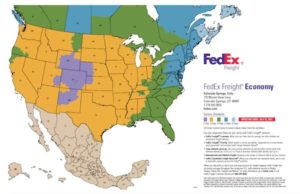

Your door leaves the shop six weeks from order confirmation. Allow additional time* for freight delivery. See map below for approximate transit times to your region.

*Pivot Door Company guarantees ship dates; we do not guarantee delivery times. Ship times depend on the carrier. That being said, we have come to trust and see great reliability in Fedex Freight.

If six weeks is not soon enough, we can manufacture a custom door sooner if you choose the Rush Option. The additional charge covers reducing current production time by 2 weeks including but not limited to; paying the extra hours worked by the production team, paying rush charges for any specialty hardware/materials not in stock. While most door designs are able to be completed in this time frame, some custom or specialty designs may require additional time in production. Allow additional time* for freight delivery.
